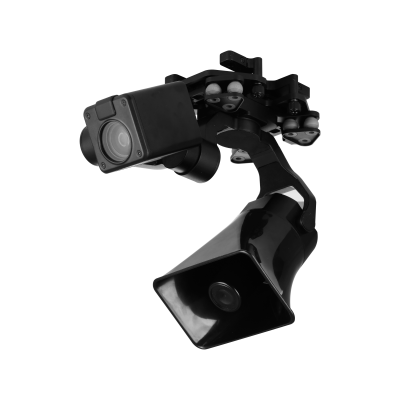

Live Broadcasting PTZ Camera

Visual Light Parameter

Sensor

1/2.8” STARVIS™ CMOS

Max.Image Restion

1920(H)x1080(V), 2 Megapixels

Mim. Illumination

Cor:0.0038Lux@F1.6

B/W:0.0037Lux@F1.6

Noise Reduction

2D/3D

Defog

Support

Electronic Shutter Speed

1/1s~1/30,000s

Focal Length

5.3mm~64mm

Digital Zoom

16X

Optical zoom

12x

Angle of View

H: 58.56° ~ 4.94°

Max. Aperture

F1.6 ~ F2.8

Frame Rate

Main stream: 1080P/720P/704×480 (1~25/30fps)

Sub stream1:704×480/352×240(1~25/30fps)

Sub stream2: 704×480/352×240(1~25/30fps)

Video Compression

H.265/H.264+/H.264

Storage

Micro SD Card 128G

Loudspeaker Parameter

Max. acoustic pressure

125dB

Max.Power

30W

Volum Control

Supported by grond station

Frequency

300Hz-6KHz

Sensitivity

106±3db

PTZ Parameter

Presision

±0.01°

Anti-vibration Axis

3 Axis

Pan/Tilt Range

Pan: ±45°; Tilt: -90° ~ 45°

Pan/Tilt Speed

Pan: 130°/s; Tilt: 130°/s

Gimbal Dimension

131*247.1*229.6mm

Gimbal Features:

Cruise following

Protection Level:

IP54

Working Env. Temp.

-20 ~ 60°C

Net Weight

1167g
